RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4

Product Categories
Keyouda Electronic Technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4

Brand Name : DGKYD

Model Number : DGKYD56211164IWA1DY4

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Category : Modular Jacks

Component Type : PCB Jack

Type : RJ11

Magnetic : NONE

Performance Category : cat 3 5

Insetion Type : Side entry

Mount Style : DIP

OEM/ODM : Yes

Number of Positions/Contacts : 6p4c (RJ11, Ethernet)

Gold plating on contact pins : 6U

Storage temperature : -40°C~+85°C

Operating temperature : -40°C~+85°C

Contact Now

RJ11 Interface Connector 6P4C All Plastic Lightless Industrial Network Port
Product Overview

RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4

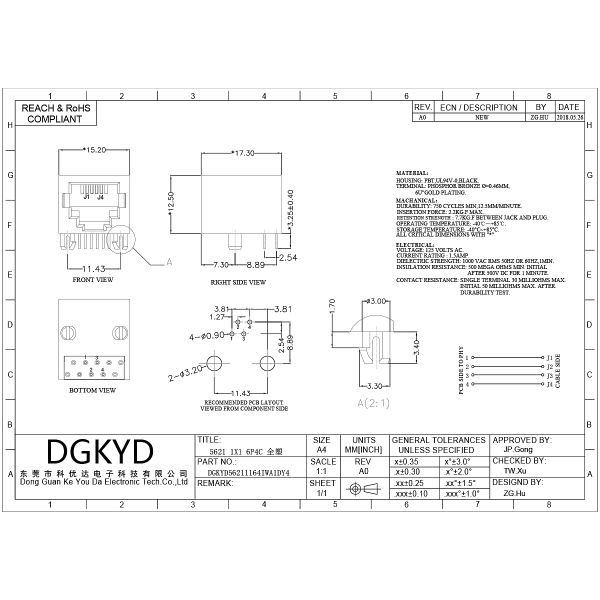

Product Datasheet (PDF)
Technical Specifications
Part Number DGKYD56211164IWA1DY4
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ11
Connector Type Modular Jack
Latch Style Standard
Latch TAB-DOWN
Filter Without Filter
LED Option Without LED
LED Color No
Panel Stops With Panel Stops
Shielded Without metal shield
Applies To Printed Circuit Board
Port Configuration Single Ports
Number of Positions 4
Jack Configuration 1X1
Terminals per Port 6
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0
RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4
Company Information
RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 Company Profile RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 Factory Show RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 Factory Show RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 Factory Show RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 DGKYD Product RJ11 interface connector 6P4C all plastic lightless industrial network port DGKYD56211164IWA1DY4 DGKYD Product
Product Features
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions
Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
