RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009

Brand Name : DGKYD

Model Number : DGKYD611B101DB1WD009

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Housing Material : PBT BLACK

Contact Mating Area Plating : GOLD 6u'' / 15u"/ 30u"/ 50u" for optional

Metal Shield : TIN PLATED PHOSPHOR BROZNE

LED Color : Green&Yellow

Latch : Up

PCB Mount Angle : SIDE ENTRY

Mount Stlye : Though Hole

Jack Type : RJ45 + USB

Gold plating on contact pins : 6U

Storage temperature : -40°C~+85°C

Operating temperature : -40°C~+85°C

Contact Now

RJ45 Ethernet Port with USB Lightless Shielded 100Mbps Ethernet Socket DGKYD611B101DB1WD009
RJ45 with Single USB 2.0 Sockets
Part Number: DGKYD611B101DB1WD009
Download Product Datasheet
Technical Specifications
Specification Details
Part Number DGKYD611B101DB1WD009
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP
Filter With Filter
LED Option With LED
LED Color Yellow-Green
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration Single Ports
Number of Positions 6
Jack Configuration 1X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

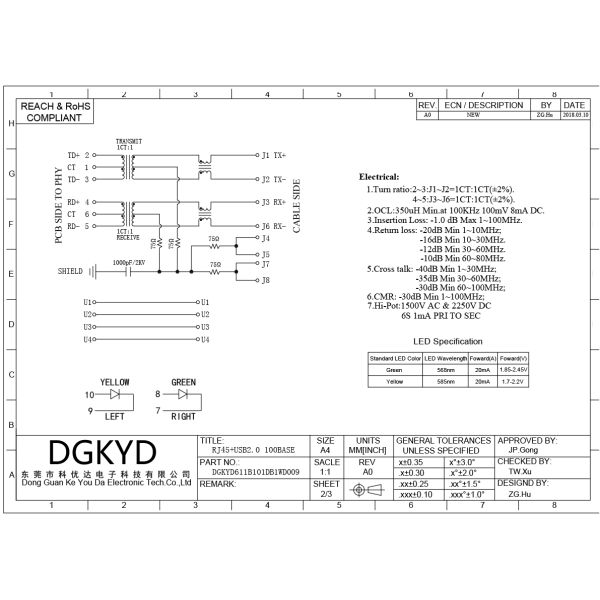

Product Images
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009
Manufacturer Information
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 Company Profile
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 Factory Show
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 Factory Show
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 Factory Show
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 DGKYD Product
RJ45 Ethernet port with USB lightless shielded 100Mbps Ethernet socket DGKYD611B101DB1WD009 DGKYD Product
Product Features
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
  • Q: Are you trading company or manufacture?
    A: We are manufacture. Welcome to our factory.
  • Q: What about your lead time?
    A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
  • Q: Can you provide samples? Are they free?
    A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
  • Q: Can I put my own logo on it?
    A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
