RJ45 Connector with Integrated Transformer
100Mbps integrated transformer crystal head Ethernet interface - Part Number: DGKYD211B031GWA4D
Product Documentation
Download Technical Datasheet (PDF) Technical Parameters
| Part Number | DGKYD211B031GWA4D | Brand | DGKYD/OEM/ODM |
|---|
| Product Type | Connector-Modular | Connector Style | Jack |
|---|
| Jack Type | RJ45 | Connector Type | Modular Jack |
|---|
| Latch Style | Standard | Latch | TAB-UP |
|---|
| Filter | With Filter | LED Option | Without LED |
|---|
| LED Color | No | Panel Stops | With Panel Stops |
|---|
| Shielded | With metal shield | Applies To | Printed Circuit Board |
|---|
| Port Configuration | Single Port | Number of Positions | 8 |
|---|
| Jack Configuration | 1X1 | Terminals per Port | 8 |
|---|
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
|---|
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
|---|
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
|---|
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
|---|
| Housing Material | PBT Polyester | Housing Color | Black |
|---|
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
|---|

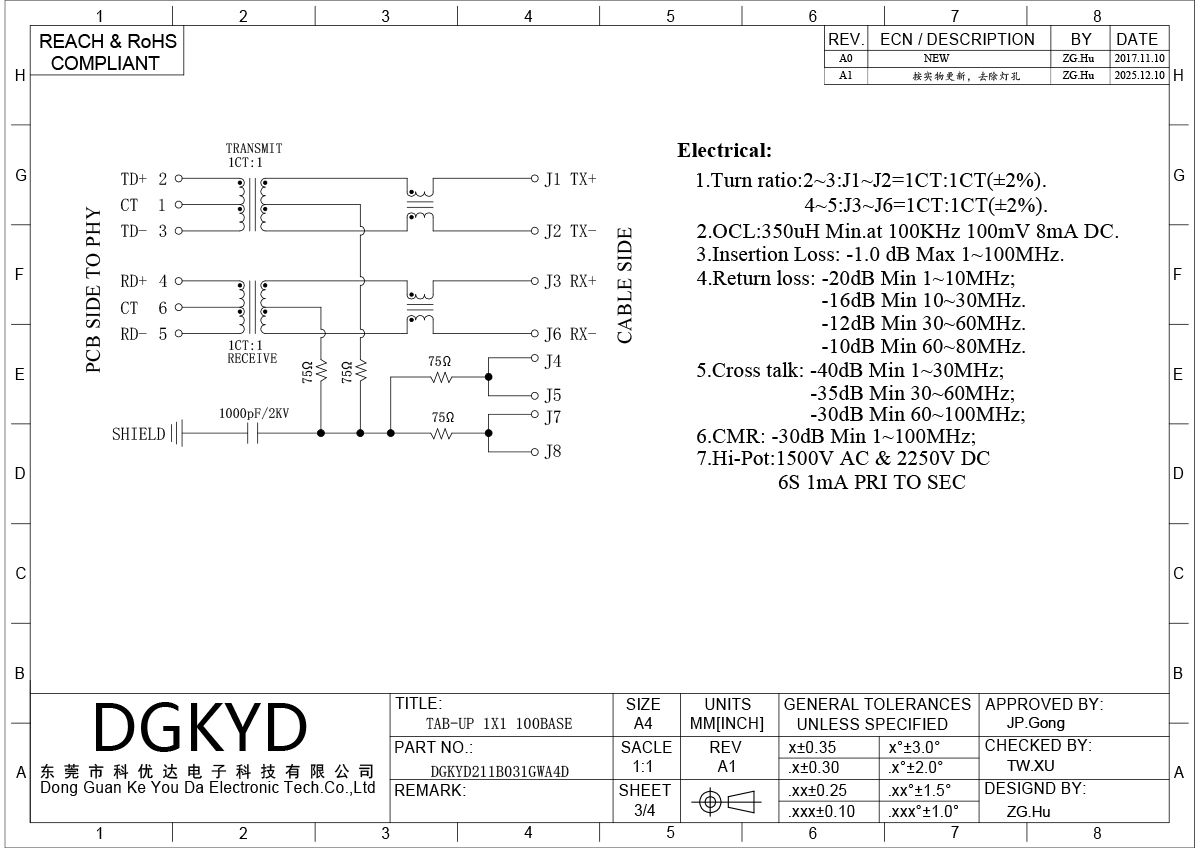

Product Images
Technical Specifications
- Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
- Type: RJ45 with built-in magnetics
- Working Frequency: High frequency with filtering and anti-interference characteristics
- Working Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
- Business Mode: Manufacturer
- Delivery Time: Approximately two weeks for standard orders
- Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
