Modular 180 Degree 1X2 Ethernet RJ45 Connector

Name: Modular 180 Degree 1X2 Ethernet RJ45 Connector
Brand: DGKYD
Price: 1 USD

Quality Modular 180 Degree 1X2 Ethernet RJ45 Connector for sale

Brand Name : DGKYD

Model Number : DGKYD52241288GWA1D4Y1

Certification : RoHS/CE/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs per day

Delivery Time : 7-14days

Packaging Details : 1080pcs/carton

Housing Material : PBT Black

Connector type : RJ45

Number of Ports : Double port

Clamp direction : TAB-UP

LED option : Without LED

PCB Mount Style : DIP

Shield : With metal shield

Product standard : Meets IEEE 802.3 specification

Contact Now

1X2 RJ45 Connector 180 Degree Without Filter Outlet

Specification

Part Number	DGKYD52241288GWA1D4Y1	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	With LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	single Port	Number of Positions	8
Jack Configuration	1 x 2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Modular 180 Degree 1X2 Ethernet RJ45 Connector

Product Tags:

1X2 Ethernet RJ45 Connector

180 Degree Ethernet RJ45 Connector

IEEE 802.3 RJ45 Ethernet Connector

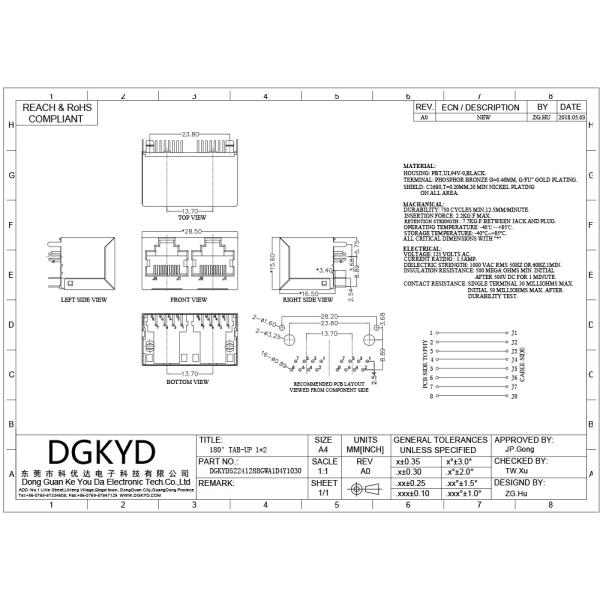

Modular 180 Degree 1X2 Ethernet RJ45 Connector Images
